System on Module

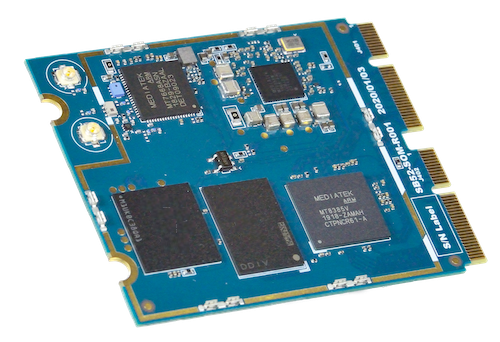

SB52

MediaTek i500 SoM

Key Features

Cutting edge System-on-Module for AI/AR/VR. Advanced full HD multimedia encode/decode capabilities and MTK NeuroPilot technology which support to perform advanced AI features such as deep learning, neural network acceleration and computer vision applications.

Product Specification

CPU
MediaTek i500 (MT8385) Octa-core
ARM Cortex-A73 Quad-core and Cortex-A53 Quad-core processors
GPU
Mali-G72 MP3 @700MHz
Dimension
45 x 55mm
Memory
eMMC 16GB or 32GB
LPDDR4 2GB or 4GB
Cellular Modem
NA
Wireless
Wi-Fi 802.11 a/b/g/n/ac MIMO
Bluetooth v5.0
Wired Connectivity
USB2.0 OTG
Ethernet
NA
Display Interface
4 lane MIPI DSI, up to 2460x1080
Camera Interface
MIPI-CSI, 4 data lanes x2, 32MP
Audio Interface
I2S
D-MIC
Earphone I/O
Other IO
I2C
PWN
SPI
UART
2x2 key matrix
ADC
GPIO
Interface Connector
M.2 E-key x2



Notes: This is an early product announcement. All provided information is preliminary and subject to change.
