System on Module

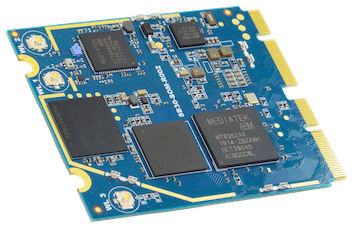

SB30

Mediatek i300A SoM (Under Development)

Key Features

Optimized AIoT module for quick term product development. This module enables customers to develop various applications such as Audio/Video, Kiosk, Digital Signage, Fitness Console, Human Machine Interface and AIoT devices.

Product Specification

CPU
MediaTek i300A (MT8362A)
ARM Cortex A35 Quad Core
GPU
IMG GE8300 500MHz
Dimension
45 x 50mm
Memory
eMMC 16GB
LPDDR3 1GB or 2GB
Cellular Modem
NA
Wireless
Wi-Fi 802.11 a/b/g/n/ac MIMO or b/g/n only
Bluetooth v5.0 or Bluetooth v4.0
Wired Connectivity
USB2.0 Host / USB2.0 OTG
Ethernet
RGMII interface
Display Interface
MIPI DSI or LVDS
Support HDMI 1.4a
Camera Interface
MIPI CSI
Audio Interface
I2S
D-MIC
Headphone I/O
Other IO
I2C
SDIO
PWM
SPI
UART
2x2 key matrix
ADC
GPIO
Interface Connector
M.2 E-key x2
20-pins board-to-board connector (HDMI interface)
Notes: This is an early product announcement. All provided information is preliminary and subject to change.
