Development Kit

WB15EVK

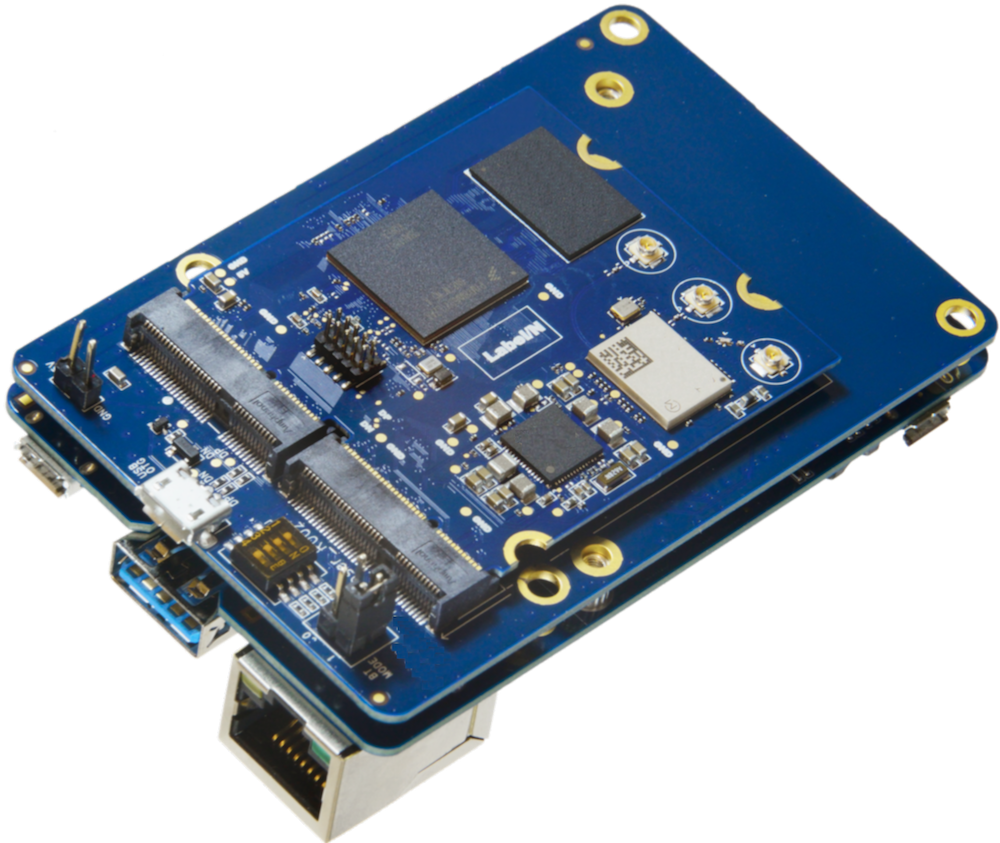

WB15 i.MX 8M Mini Development Kit

Key Features

WB15EVK features with advanced NXP® i.MX 8M Mini Quad System-on-Module designed by InnoComm and a various set of peripherals in the carrier board. This development kit is target to be an evaluation and prototyping platform, it brings DSD512 for applications requested high-performance audio process power, such as wireless networked speakers.

Product Specification

CPU
NXP i.MX 8M Mini Quad
ARM Cortex A53 Quad Core
Power Management
ROHM
Dimension
85 x 65mm
Memory
eMMC 8GB + LPDDR4 1GB
SD/MMC slot for expansion
Cellular Modem
NA
Wireless
Wi-Fi 802.11 a/b/g/n/ac, MIMO 2x2
Bluetooth v4.2
Ethernet
1Gb Ethernet RGMII interface x1
Display Interface
MIPI DSI x1
Audio Interface
SAI / I2S
S/PDIF Rx & Tx
PDM
Expension header
I2C
SPI
SDIO
UART
PCIe
GPIO
PWM
External Connector
USB 2.0 OTG x1, USB 2.0 Host x1
Debug
MicroUSB
Buttons
Power on/Reset
Interface Connector
M.2 E-key x2
60-pins board-to-board connector (optional)
Online ordering



Notes: This is an early product announcement. All provided information is preliminary and subject to change.
