System on Module

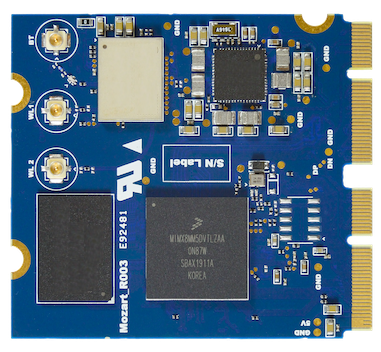

WB15

NXP i.MX 8M Mini SoM

Key Features

WB15 - the latest wireless System-on-Module powered by NXP®’s i.MX8M Mini application processor.

NXP i.MX 8M Mini applications processor blends advanced processing capabilities and deliver low-power and high-performance solutions for embedded consumer applications.

WB15 SoM, InnoComm advanced NXP® i.MX 8M Mini audio processing SoM is designed for streaming audio devices – wireless networked smart speakers applications for a superior entertainment experience by audio processing power.

Product Specification

CPU
NXP i.MX 8M Mini Quad
ARM Cortex A53 Quad Core
Power Management
ROHM
Dimension
45 x 50mm
Memory
eMMC 8GB
LPDDR4 1GB
Cellular Modem
NA
Wireless
WiFi 802.11 a/b/g/n/ac, MIMO 2x2
Bluetooth v4.2
Ethernet
1Gb Ethernet RGMII interface x1
Display Interface
MIPI DSI
Audio Interface
SAI / I2S
S/PDIF Rx/Tx
PDM
DSD512
Other IO
I2C
SPI
SDIO
UART
PCIe
GPIO
PWM
Interface Connector
M.2 E-key x2
60-pins board-to-board connector (optional)
Approval
CE, FCC, MIC, IC



Notes: This is an early product announcement. All provided information is preliminary and subject to change.
