WB10ATEVK

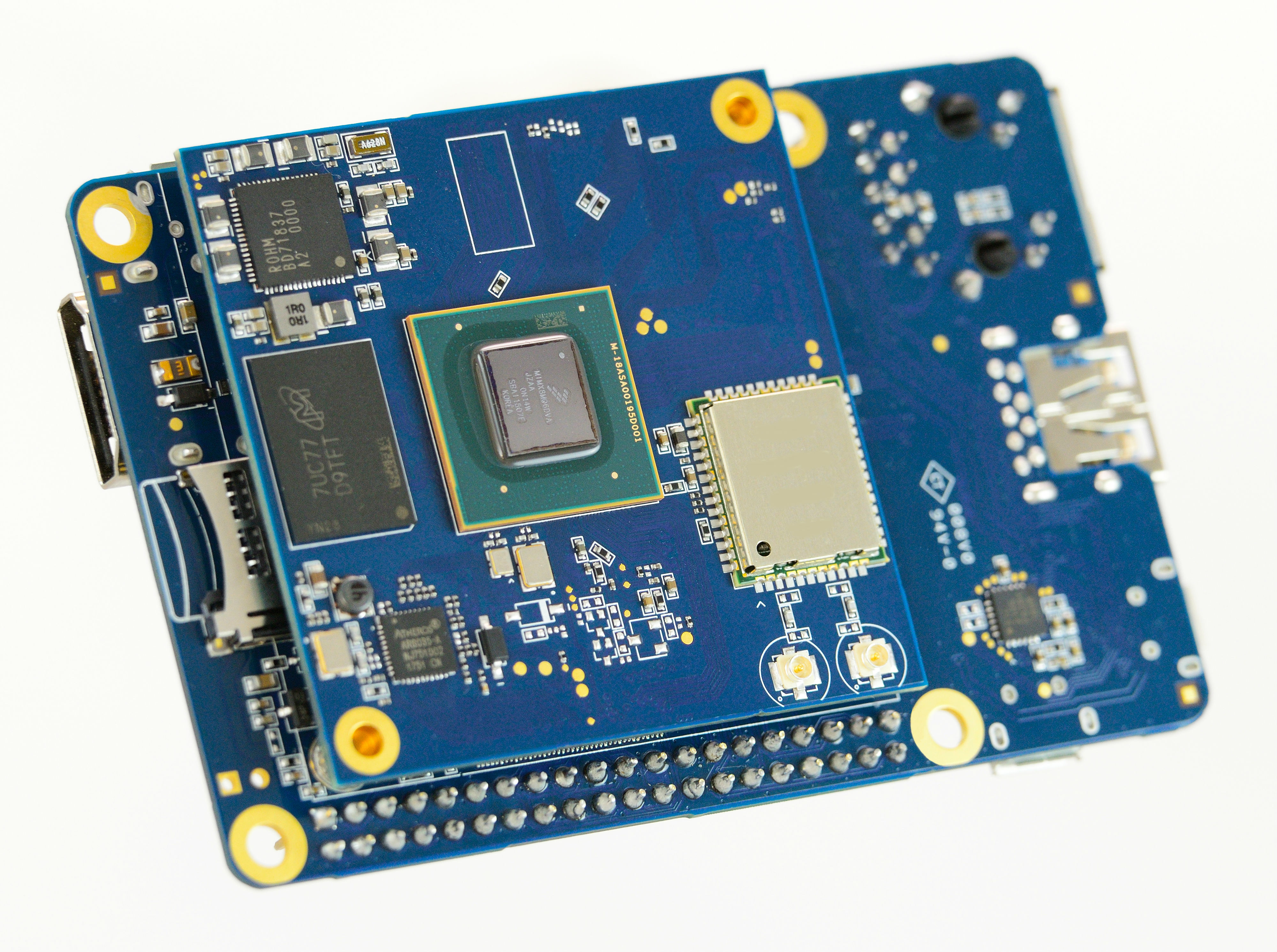

WB10-AT i.MX 8M Development Kit

Key Features

WB10-AT is one of InnoComm SoM family based on NXP® ARM®based i.MX 8M application processors.

WB10-AT EVK is serving as an evaluation and development platform for IoT applications using Android Things OS where developer can download through Google open source forum.

Product Specification

CPU
NXP i.MX8M Quad
ARM Cortex A53 Quad Core
1080p video codec
Power Management & Audio Codec
ROHM
Dimension
85 x 65mm
Memory
eMMC 4GB + LPDDR4 1GB
SD/MMC slot for expansion
Cellular Modem
NA
Wireless
WiFi 802.11 a/b/g/n/ac, MIMO 2x2
Bluetooth v4.2
Ethernet
10/100M/1Gbps x 1
Display Interface
MIPI DSI x1, 4-Lane
Audio Interface
SAI
Expension header
40-pin header, support
I2Cs
UARTs
eCSPI
PWM
GPIOs & Power for user use
External Connector
RJ45, USB 3.0/USB 2.0 OTG, HDMI 2.0a
Debug
MicroUSB
Buttons
Power on/Reset
Online ordering



Notes: This is an early product announcement. All provided information is preliminary and subject to change.
