System on Module

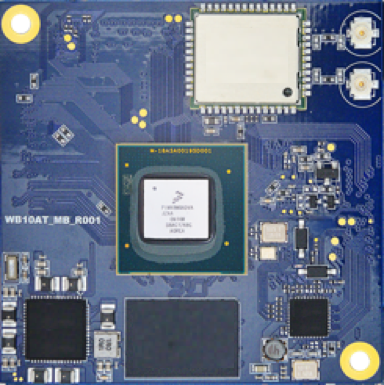

WB10-AT NXP i.MX 8M SoM

Android Things Module

Key Features

WB10 product family is one of InnoComm’s System-on-Module product family based on NXP®
ARM® i.MX 8M application processors.

WB10-AT is aimed at enabling faster development of secure connected device for IoT application by using Google pre-certified module.

Download

Product Specification

CPU
NXP i.MX 8M Quad
ARM Cortex A53 Quad Core
1080p video codec
Power Management & Audio Codec
ROHM
Dimension
50.3 x 50.3mm
Memory
eMMC 4GB
LPDDR4 1GB
Cellular Modem
NA
Wireless
WiFi 802.11 a/b/g/n/ac, MIMO 2x2
Bluetooth v4.2
Ethernet
10/100M/1Gbps x 1
LCD Interface
HDMI 2.0a, MIPI DSI
Audio Interface
SAI x4
S/PDIF Rx/Tx
DSD512
Other IO
I2C x2
SPI x1
UART x3
GPIO
CSI x2
PWM, PCIe
Interface Connector
1.27mm box header
80-pins x3



Notes: This is an early product announcement. All provided information is preliminary and subject to change.
