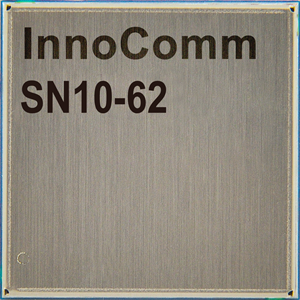

SIGFOX Module

SN10-62

SIGFOX Combo Module

Key Features

Sigfox Combo Module

Product Specification



Description
SIGFOX plus GPS Combo Module for Zone 2 / Zone 4
Microcontroller
48MHz ARM Cortex M3
Memory
128kB EROM, 20kB RAM, 8kB SRAM for Cache
Size (mm)
 27.0 x 27.0 x 2.8 mm
SIGFOX
Frequency Band: 902MHz
Output Power: 23dBm
Receiving Sensitivity-125dBm @ 600bps 2GFSK
BLE
NA
WiFi
NA
GPS
Support multi-GNSS (GPS+QZSS)
Interface
UART, I2C, GPIO
Sensor
Accelerator
Power Supply
3.3 ~4.5VDC
Operating Temperature
-40° ~ +85°C
Approval
Sigfox Certified, FCC, Anatel(On-going)
EVB
Available
Availability
Engineering sample
