SIGFOX Module

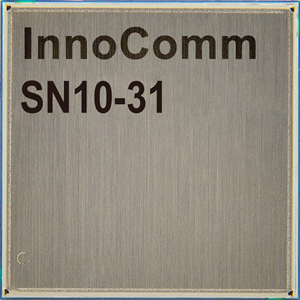

SN10-31

SIGFOX Combo Module

Key Features

Sigfox Combo Module

Product Specification



Description
SIGFOX plus WiFi, BLE Combo Module for Zone 1
Microcontroller
48MHz ARM Cortex M3
Memory
128kB EROM, 20kB RAM, 8kB SRAM for Cache
Size (mm)
27.0 x 27.0 x 2.8 mm
SIGFOX
Frequency Band: 868MHz
Output Power: 14dBm
Receiving Sensitivity-125dBm @ 600bps 2GFSK
BLE
RF frequency range 2360 ~ 2500MHz
Programmable output power up to +5dBm
Receiver sensitivity (-97dBm)
WiFi
IEEE 802.11 b/g/n compliance
GPS
NA
Interface
UART, I2C, GPIO
Sensor
Accelerator
Power Supply
3.3 ~4.5VDC
Operating Temperature
-40° ~ +85°C
Approval
SIGFOX Certified, CE
EVB
Available
Availability
Engineering sample
