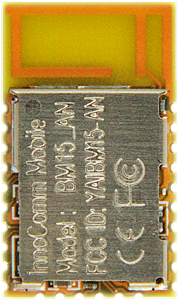

Wireless Module

BM15_AN

Bluetooth Low Engergy

Key Features

1. ARM Cortex M3 with sensor engine and embedded flash
2. Ultra low power RF
3. Embedded antenna

Product Specification

Description
BLE module with on board antenna
Core
TI® CC2640
Frequency
2360 - 2500 MHz
Size (mm)
18.0 x 10.5 x 1.8
Interface
26
UART
SPI
I2C
I2S
GPIO(Max.)
1
2
1
1
15
Power (dBm)
5
Receiver sensitivity (dBm)
-97
Approval
CE, FCC
QDID
Power supply
1.9V ~ 3.8V
Operating Temp.
-40° ~ +85°C
EVB
Available
Availability
MP
