System on Module

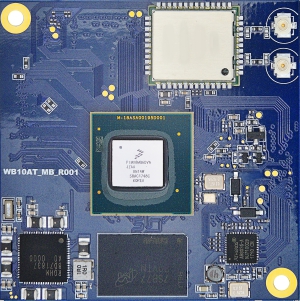

WB10-P

NXP i.MX 8M SoM

Key Features

WB10-P is the next generation of wireless System-on-Module powered by NXP®’s i.MX8M application processor.

NXP i.MX 8M applications processor family is built with advanced media processing for full 4K UltraHD video playback, High Dynamic Range (HDR), DSD512 audio and advanced audio streaming interfaces.

InnoComm i.MX 8M SoM targets the next generation of Audio-Video streaming applications like Internet Audio, Home Entertainment, advanced AI audio, digital signage, also can be implemented on Internet of Things of industrial applications.

Product Specification

Order
CPU
NXP i.MX 8M Quad
ARM Cortex A53 Quad Core
Power Management
ROHM
Dimension
50.3 x 50.3mm
Memory
eMMC 8GB
LPDDR4 2GB
Cellular Modem
NA
Wireless
WiFi 802.11 a/b/g/n/ac, MIMO 2x2
Bluetooth v4.2
Ethernet
10/100M/1Gbps x 1
LCD Interface
HDMI 2.0a, MIPI DSI
Audio Interface
SAI x4
S/PDIF Rx/Tx
DSD512
Other IO
I2C x2
SPI x1
UART x3
GPIO
CSI x2
PWM, PCIe
Interface Connector
1.27mm box header
80-pins x3
Approval
FCC, MIC



Notes: This is an early product announcement. All provided information is preliminary and subject to change.
